VK138 Headsets

VK138 Headsets

A customizable configuration of two flange and two thread rollers ensures optimum sealing efficiency.

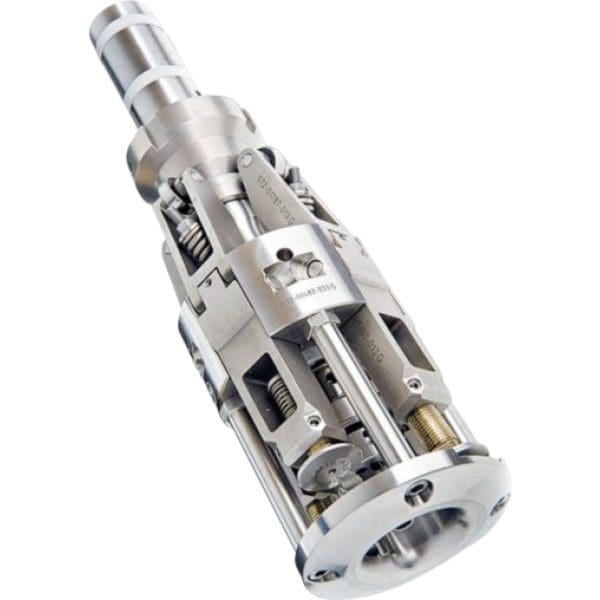

The VK138 bottle capper headset is Closure Systems International’s tried-and-tested standard headset for aluminum roll-on closures.

A customizable configuration of two flange and two thread rollers ensures optimum sealing efficiency. The head’s slim construction makes it suitable for use even on small-pitch machines.

Reliable & Simple

  • Fast and simple control of side pressure using easy-access adjuster nuts
  • Exactly coordinated leverages allow very small side pressure
  • All bearings are fitted with replaceable bushings for easy replacement
  • Two variable thread rollers and two adjustable flange rollers ensure uniform lateral forces, enabling the thread to be rolled out with maximized precision
  • Tracer pin (safety plunger) prevents the roller arms engaging if there is no closure present
  • Easily maintained with one lubrication point
  • Maintenance-free ejector reduces stress, extending the maintenance intervals
  • 100% stainless steel

Versatility

  • The centering bell to prevent skewed closures is suitable for all types of aluminum closures
  • Can be used on all CSI capping machines
  • Roller arms have pre-adjusted factory settings specific to the closure being applied
  • Roller arms are mutually interchangeable
  • Versatile closure-specific head pressures ranging from 500 to 3,400 N
  • Standard 90mm diameter slim-line construction can be used even with small-pitch machines
  • Variations of the VK138 are available for aluminum special closures
