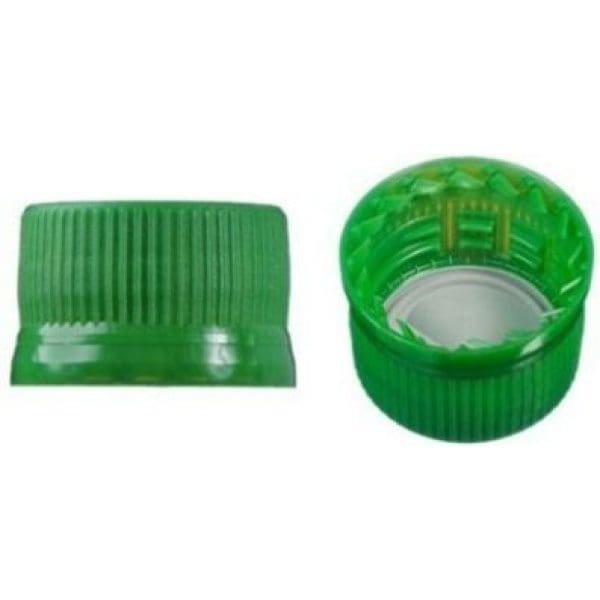

Euro-Lok HR 28mm

Euro-Lok HR 28mm

Market Segment

Additional information

Closure Diameter
Bottle Finish
Application/Fill Processes
Material Types

Key Performance Attributes

  • Maximin seal integrity as high as 50˚ C
  • Inner liner profile compensates for neck shrinkage, preventing CO2 from escaping
  • Consistent removal torque performance across various spindle speeds
  • Easy-to-open exterior design
  • Excellent resealability
  • Patented tamper-evident band technology ensures visual and tactile confirmation when the band breaks, providing consumer security without compromising bottling performance
  • Built-in venting slots for safe venting of excess pressure
  • Under-the-Cap promotion – video-jet print, laser print, or embossed liner

Closure Details

For beverages packaged in PET bottles, this cap maximizes CO2 sealing performance and product freshness under the most demanding conditions.

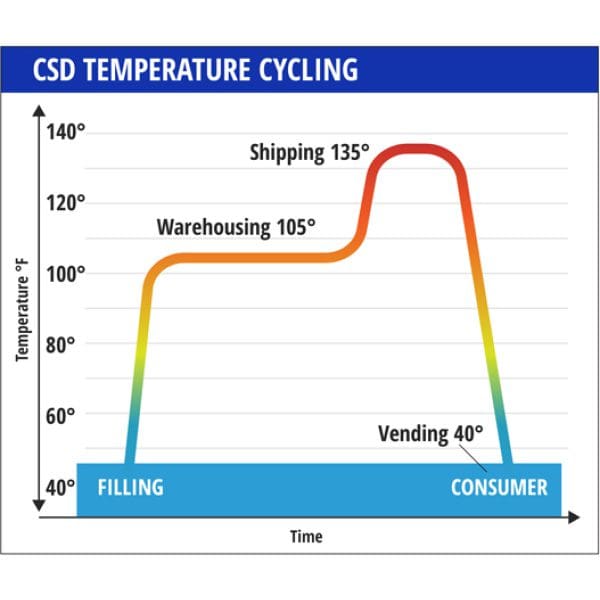

CSI research shows that filled PET bottles can be subjected to extreme “temperature cycling” – from less than 5˚ C to over 50˚ C. These conditions can cause shrinkage of the heat-sensitive PET material, which can cause a gap to develop between the bottle finish and the closure. The result is loss of CO2 and product freshness.

Innovative Euro-Lok HR liner maximizes seal integrity and product freshness, even at temperatures as high as 50˚ C, using a plug-side-seal and top seal design.

Euro-Lok HR’s inner liner profile compensates for neck shrinkage in PET bottles by remaining in continual contact with the bottle finish, preventing CO2 from escaping.

Euro-Lok HR improves the mechanical seal and maximizes product freshness in conditions where extreme temperatures can cause package leakers throughout the distribution channel. CSI’s proven application performance and capping equipment provides bottlers with the best sealing performance in the industry under extreme temperature cycling conditions.

  • Extensive range of shell colors to attract customers
  • Precise multi-color top printing for clear communication
  • Easy to recycle – environmentally friendly
  • Industry-leading application performance
  • Designed for Pick and Place and Direct Pick-Up application
  • Interchangeable with Euro-Lok set-up

Total Closure & Capping Systems Solutions

In addition to precision made quality closures, CSI provides capping equipment and unparalleled customer and
technical service across the globe.

CSI’s closure systems solutions and ongoing innovation help our partners maximize profits by increasing the
marketability of their brands and optimizing their total cost of operations.
